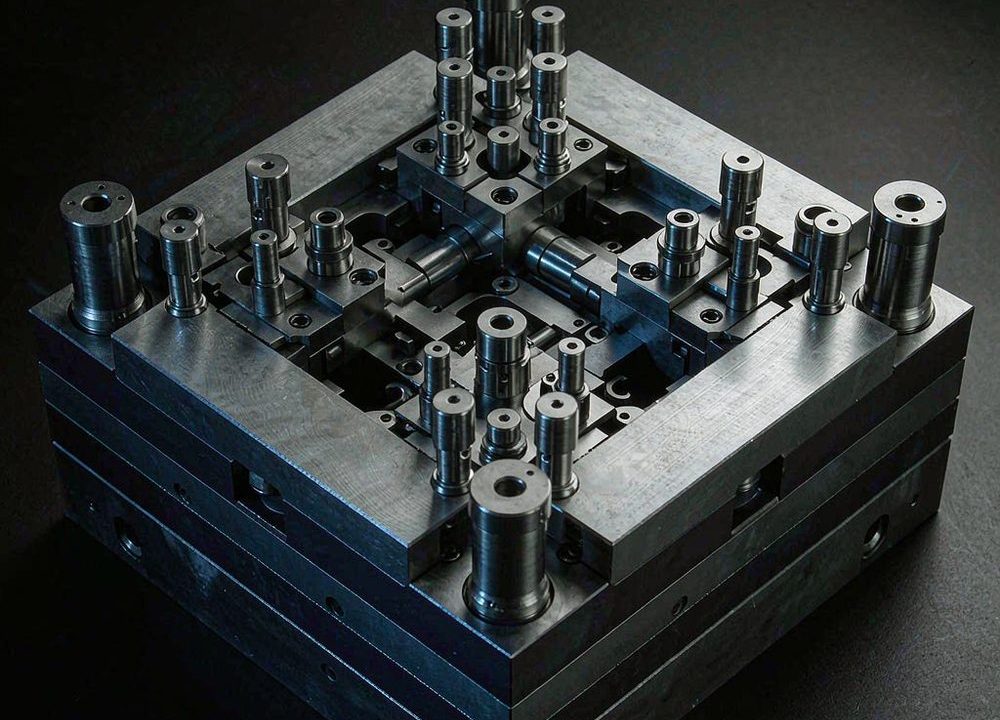

Thin-Wall Packaging Container Mold
High-cycle thin-wall tool for PET and PP packaging, 6.5-second cycles with in-mold gate cutting.
- Material
- S136H + P20 core
- Tolerance
- ±0.008 mm
- Max Size
- 500 × 400 × 350 mm
- Process

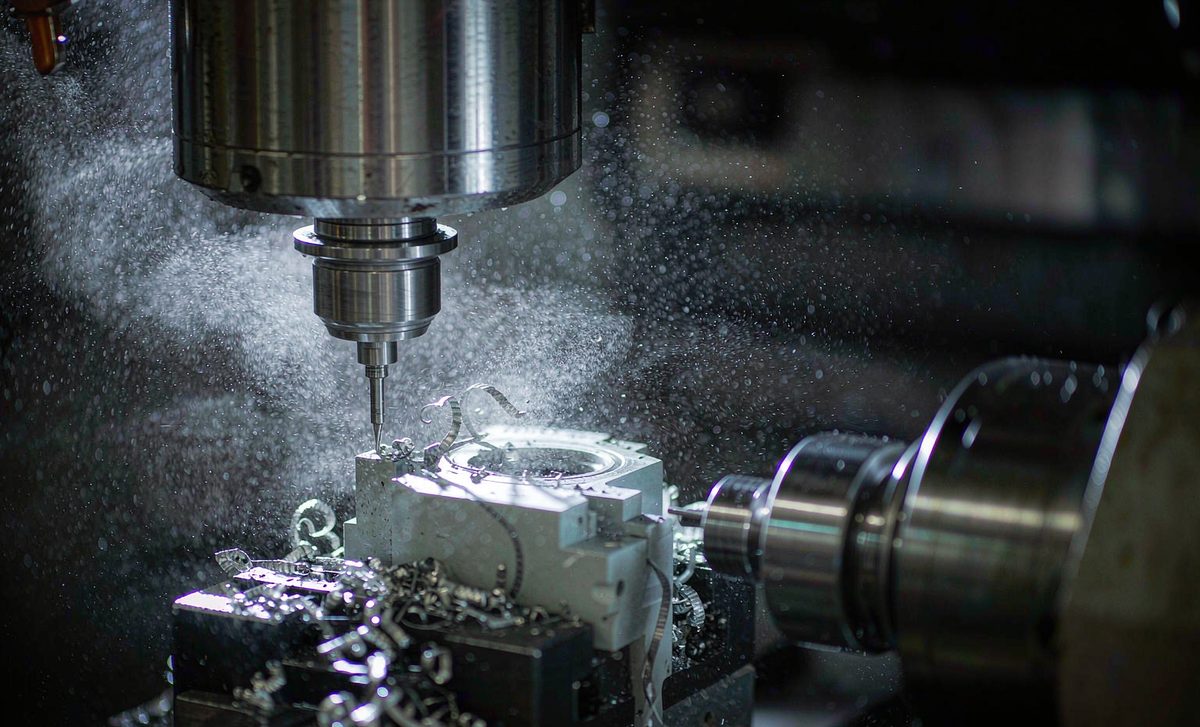

- 5-axis milling · EDM · polish
- Surface Finish
- High polish / matte texture
- Lead Time
- 32 days
- MOQ
- 1 set
- Applications
- Food & beverage packaging
Key Features
- 6.5-second cycle at 0.9 mm wall thickness
- In-mold gate cutting eliminates secondary degating
- Interchangeable cavity inserts for multi-format tools
- Conformal cooling channels for thermal balance
Engineered for packaging programs that live or die by cycle time: optimized cooling layout, high-speed ejection and in-mold gate cutting deliver consistent 6.5-second cycles with 0.9 mm wall thickness.
Interchangeable cavity inserts let one tool family cover multiple container formats.
Need This Part Made to Print?
Send your drawing and receive a DFM report plus quotation within one business day.
